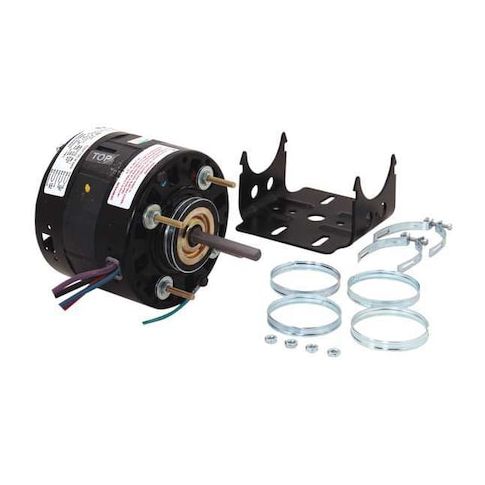

Mtr, Sh Pole, 1/10 HP, 1550, 115/208-230, 42Y MPN:RF4401
Mtr, Sh Pole, 1/10 HP, 1550, 115/208-230, 42Y
This single-phase shaded pole motor is designed for continuous operation in a variety of applications, including residential and commercial HVAC systems. With a nameplate RPM of 1,550 and a 1/10 HP rating, it provides reliable and efficient performance. The motor's compact design and open air over enclosure make it ideal for space-constrained installations. Its ability to operate at 115/208-230V AC and 60 Hz frequency makes it versatile for use in different environments. Suitable for applications such as fan motors, blower motors, and other low-power HVAC applications, this motor offers reliable and efficient operation with minimal maintenance requirements.
Top product features:
- Shaded pole motor design
- Single-phase operation
- Continuous duty cycle
Top product applications:
- Air Conditioning
- Industrial Fan
- Pump
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/10 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 4.0/2.0 A Full Load Amps, 42Y Frame, Output Watts 70 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.10
- Package Width: 5.90
- Package Height: 6.60
- Package Weight: 10.10
