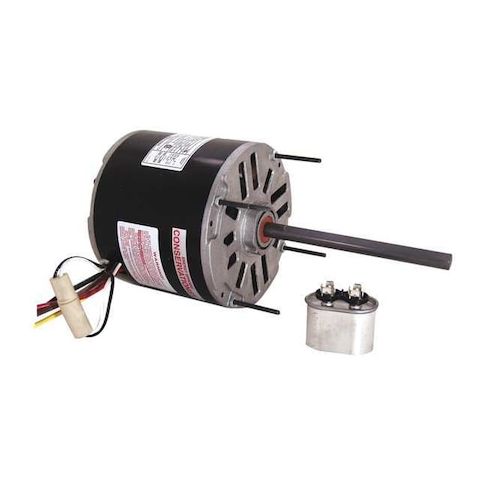

Condenser Fan Motor, 3/4 HP, 1075 rpm, 60Hz MPN:BDH1076
Condenser Fan Motor, 3/4 HP, 1075 rpm, 60Hz
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 2, Voltage 460V AC, 2.2 A Full Load Amps, 48Y Frame, Output Watts 560 W, 60 Hz Hz, Replacement For Mfr. No. 3290, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.40
- Package Width: 7.40
- Package Height: 7.70
- Package Weight: 20.00
Product info last updated on February 9, 2026 8:33am UTC
Category: Motors
