Motor, PSC, 1/3 HP, 1100, 115/230V, 48Z, TEAO MPN:C046A
Motor, PSC, 1/3 HP, 1100, 115/230V, 48Z, TEAO

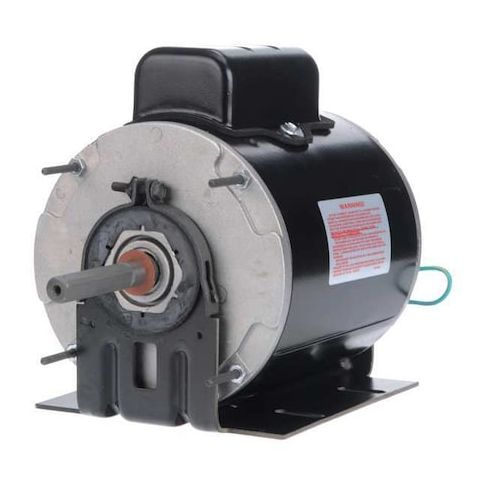

This 1/3 HP, 1100 RPM motor from Century is a reliable and efficient choice for various applications, including farm duty and single-phase operations. Its permanent split capacitor design ensures smooth and quiet operation, while its totally enclosed air-over (TEAO) enclosure protects against dust and moisture. With a continuous duty cycle and auto thermal protection, this motor can withstand demanding tasks. Suitable for use in environments up to 40°C, it's ideal for applications such as pumps, fans, and conveyors, offering a cost-effective and long-lasting solution for industries that require reliable motor performance.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure provides a safe and protected environment for the motor's internal components.
- Permanent Split Capacitor Motor Design offers efficient and reliable operation.
- Continuous Duty Cycle allows the motor to operate for extended periods without overheating.
Top product applications:
- Industrial laundry equipment
- Pumps and water circulation systems
- Fans and blowers for ventilation systems
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,100 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.5/2.3 A, 48Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.90
- Package Width: 7.20
- Package Height: 10.30
- Package Weight: 17.44
Product info last updated on February 18, 2026 12:17pm UTC
Category: Motors
