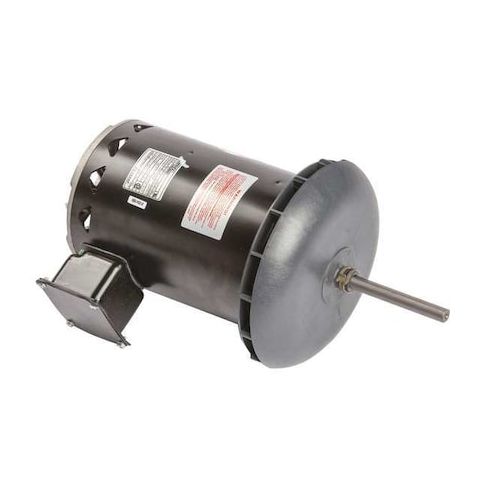

Condenser Fan Motor, 7/8 hp MPN:FC1086F
Condenser Fan Motor, 7/8 hp
This 7/8 hp condenser fan motor from Century is a reliable and efficient solution for various applications. Suitable for single-phase systems, it operates at 1,075 RPM and is usable at 208V and 200V. With a permanent split capacitor design and continuous duty cycle, it provides consistent performance. The motor features automatic thermal protection and is designed for open-air operation in temperatures up to 70°C. Ideal for use in HVAC systems, this motor is a cost-effective and reliable choice for commercial and industrial settings, offering improved efficiency and reduced energy consumption.
Top product features:
- Permanent Split Capacitor motor design
- Usable at 208V and 200V
- Auto thermal protection
Top product applications:
- Air Conditioning Units
- Central Air Conditioning Systems
- Window Unit Air Conditioners
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 7/8 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 4.6/2.3 A Full Load Amps, 48Y Frame, Output Watts 600 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.90
- Package Width: 9.60
- Package Height: 18.70
- Package Weight: 26.73
Product info last updated on January 17, 2026 6:20am UTC
Category: Motors
