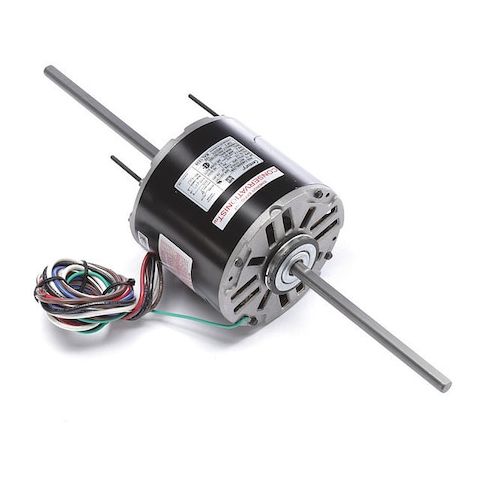

Room Air Cond Mtr, PSC, OAO, 1075 RPM MPN:RAL1036
Room Air Cond Mtr, PSC, OAO, 1075 RPM
This Century Room Air Conditioner Motor is a reliable and efficient solution for various applications, including residential and commercial cooling systems. With a single-phase, permanent split capacitor design, it provides a consistent performance at 1,075 RPM. The motor's compact size and semi-enclosed air-over design make it suitable for tight spaces. It can handle continuous duty cycles at temperatures up to 40°C and is protected by automatic thermal protection. Suitable for use in rooms with a maximum ambient temperature of 40°C, this motor is ideal for small air conditioning systems, heat pumps, and ventilation fans.
Top product features:
- Single Phase operation allows for use in a variety of electrical configurations.
- Permanent Split Capacitor motor design provides reliable and efficient operation.
- Three speeds enable the motor to adapt to different cooling demands.
Top product applications:
- Room Air Conditioners
- Window Air Conditioners
- Portable Room Air Conditioners
Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 115V AC, 5 A Full Load Amps, 48Y Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Semi Enclosed Air-Over
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 7.00
- Package Height: 7.00
- Package Weight: 17.00
Product info last updated on January 27, 2026 1:34pm UTC
Category: Motors
