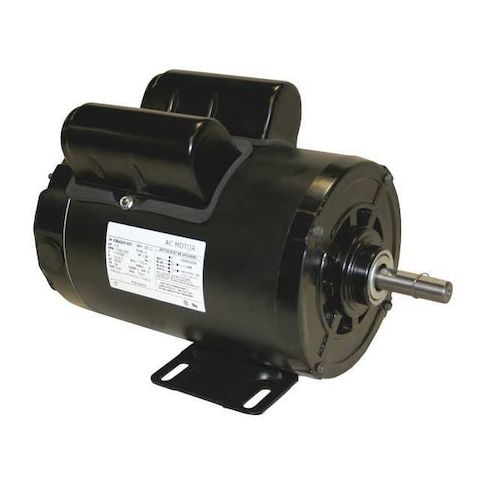

Agricultural Fan Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1, 725 Nameplate RPM, 56 Frame MPN:PD6104AV3
Agricultural Fan Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1, 725 Nameplate RPM, 56 Frame
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.0/4.5 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.3, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.20
- Package Width: 8.10
- Package Height: 10.70
- Package Weight: 32.68
Product info last updated on March 11, 2026 7:17pm UTC
Category: Motors
