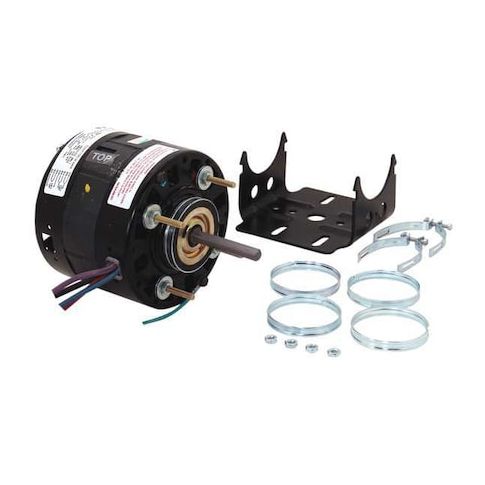

Mtr, Sh Pole, 1/10 HP, 1050, 115/208-230, 42Y MPN:RF6402
Mtr, Sh Pole, 1/10 HP, 1050, 115/208-230, 42Y
This Century HVAC motor is a reliable and efficient solution for a variety of applications, including residential and commercial heating and cooling systems. With a single-phase design and 1/10 horsepower rating, it's perfect for small to medium-sized spaces. The motor's shaded pole design and 1,050 RPM nameplate speed ensure quiet and smooth operation. Its compact size and lightweight design make it easy to install and maintain, while its continuous duty cycle and 40°C maximum ambient temperature rating ensure reliable performance in a range of environments. Ideal for use in fan coils, air handlers, and other HVAC equipment.
Top product features:
- Runs at 1,050 RPM
- Operates at 115/208-230V AC
- Has a shaded pole motor design
Top product applications:
- Residential HVAC systems
- Commercial HVAC systems
- Industrial ventilation systems
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/10 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 4.0/2.0 A Full Load Amps, 42Y Frame, Output Watts 70 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.20
- Package Width: 6.00
- Package Height: 6.50
- Package Weight: 10.00
