Mtr, Sp Ph, 1/2hp, 1725, 115/208-230, 56, TEAO MPN:ARB2054L4
Mtr, Sp Ph, 1/2hp, 1725, 115/208-230, 56, TEAO

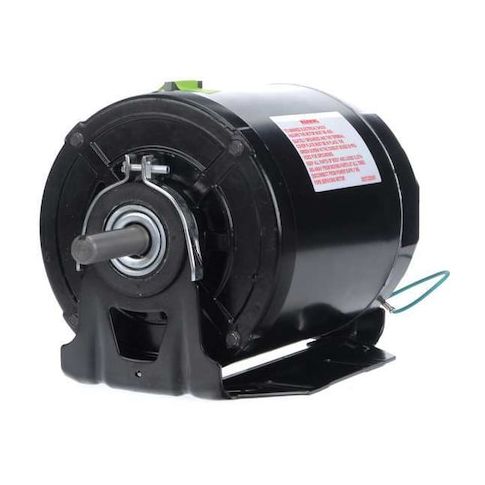

This reliable fan and blower motor from Century is designed for single-phase applications, featuring a split-phase motor design and 1/2 horsepower output. With a nameplate RPM of 1,725 and 56 frame size, it provides efficient airflow in various settings. Suitable for use at 115/208-230V AC, it operates at 6.8/3.1/3.4A full load amps, making it a versatile solution for commercial and industrial environments. Ideal for use in ventilation systems, HVAC units, and other applications requiring reliable airflow, this motor offers a cost-effective and durable option for maintaining optimal air quality and circulation.
Top product features:
- Single Phase Design
- Totally Enclosed Air-Over Motor Enclosure
- Continuous Duty Cycle
Top product applications:
- HVAC Fan
- Portable Air Conditioner
- Range Hood
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 6.8/3.1/3.4 A Full Load Amps, 56 Frame, Output Watts 375 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 8.00
- Package Height: 8.80
- Package Weight: 23.49
Product info last updated on March 21, 2026 6:32pm UTC
Category: Motors
