Capacitor-Start Belt Drive Motor, 3/4, 1/5 HP, 56 Frame, 115V AC Voltage, 1, 725/1, 140 Nameplate RPM MPN:C533

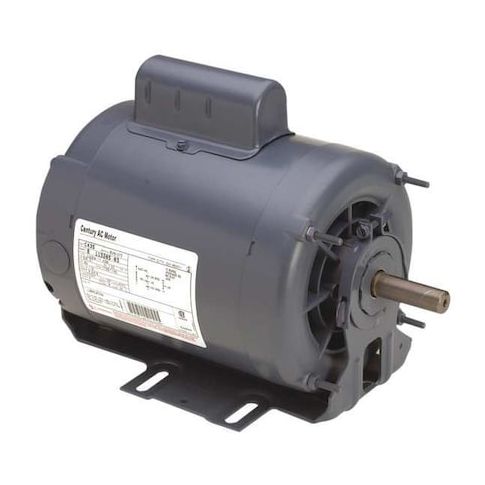

Capacitor-Start Belt Drive Motor, 3/4, 1/5 HP, 56 Frame, 115V AC Voltage, 1, 725/1, 140 Nameplate RPM
This 3/4 HP, 1,725/1,140 RPM Capacitor-Start Belt Drive Motor is a reliable and efficient solution for a variety of applications, including fans and blowers. Its single-phase design and open drip-proof enclosure make it suitable for use in a range of environments. With a service factor of 1.25 and auto thermal protection, this motor is built to withstand continuous operation. Its compact size and lightweight design make it easy to install and maintain, and its 115V AC voltage rating ensures seamless integration with existing electrical systems. Ideal for use in residential and commercial settings, this motor is a cost-effective and reliable choice.
Top product features:
- Capacitor-start design for improved starting and running performance
- Single-phase motor operation for compatibility with standard household electrical systems
- Open drip-proof enclosure design for protection against dust and water splashing
Top product applications:
- HVAC Systems
- Dust Collection Systems
- Industrial Process Ventilation
Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp, 7/32 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 10.0/4.0 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.00
- Package Width: 8.10
- Package Height: 10.60
- Package Weight: 34.00
