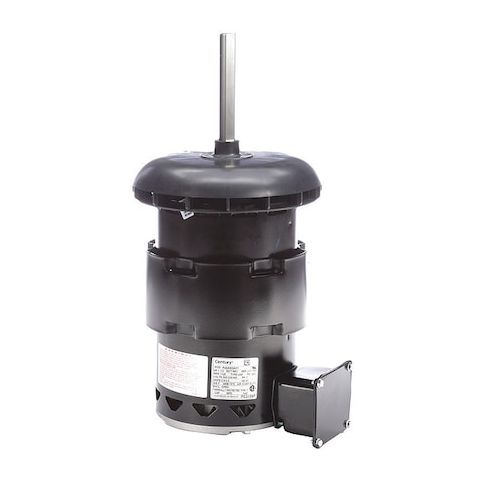

Condenser Fan Motor, 1-1/2HP, 1120rpm, 60Hz MPN:FC3156F
Condenser Fan Motor, 1-1/2HP, 1120rpm, 60Hz
This 1.5HP condenser fan motor from Century is designed for three-phase applications, providing reliable performance in a wide range of environments. With a nameplate RPM of 1120 and a voltage range of 200-230/460V AC, it can be used in various settings, including at 208V and 200V. Its continuous duty cycle and auto thermal protection ensure efficient operation, while its open air over design and belly band mounting type provide flexibility in installation. Suitable for applications such as air conditioning, heating, and ventilation systems, this motor offers a cost-effective solution for demanding operations.
Top product features:
- Three-phase design
- Continuous duty cycle
- Thermal protection with auto shutdown
Top product applications:
- HVAC Systems
- Central Air Conditioning Units
- Package Air Conditioning Systems
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,120 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 5.8/2.9 A Full Load Amps, 48Y Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.80
- Package Width: 11.80
- Package Height: 10.60
- Package Weight: 31.15
