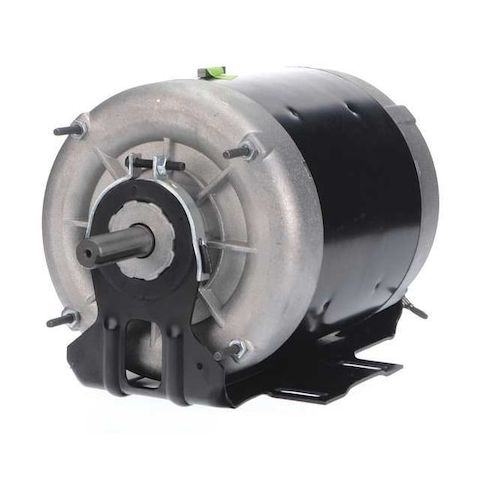

Motor, Split Ph, 1/2 HP, 1725, 115V, 56, TEAO MPN:P56S17TRS40002A2A
Motor, Split Ph, 1/2 HP, 1725, 115V, 56, TEAO
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 7.1 A Full Load Amps, 56 Frame, Output Watts 375 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 8.00
- Package Height: 10.00
- Package Weight: 25.85
Product info last updated on February 2, 2026 7:36pm UTC
Category: Motors
