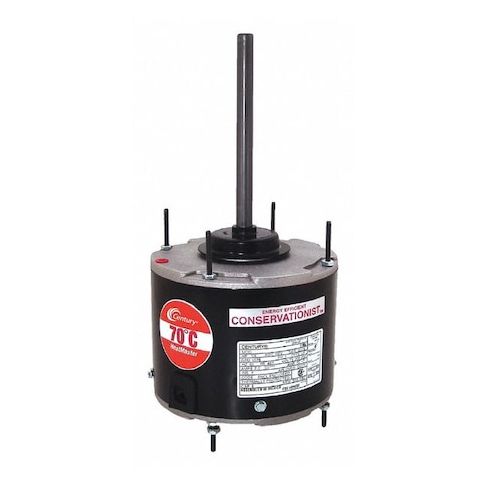

Condenser Fan Motor, 1/4 hp MPN:FE1026SF
Condenser Fan Motor, 1/4 hp
This 1/4 hp condenser fan motor from Century is a reliable and efficient solution for a variety of applications, including heating and cooling systems, air handlers, and condensers. With a permanent split capacitor design and totally enclosed air-over enclosure, it provides quiet operation and long-lasting performance. Suitable for use in environments with a maximum ambient temperature of 70 degrees C, this motor is ideal for commercial and industrial settings. Its compact size and lightweight design make it easy to install and maintain, and its continuous duty cycle ensures consistent performance.
Top product features:
- Permanent Split Capacitor motor design
- Totally Enclosed Air-Over motor enclosure
- Auto thermal protection
Top product applications:
- Air Conditioning System
- HVAC Unit
- Commercial Refrigeration
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.0 A Full Load Amps, 48Y Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.90
- Package Width: 7.90
- Package Height: 13.20
- Package Weight: 12.60
Product info last updated on February 1, 2026 8:55am UTC
Category: Motors
