Motor, PSC, 1/2 HP, 1100, 115/230V, 48Z, TEAO MPN:C047A
Motor, PSC, 1/2 HP, 1100, 115/230V, 48Z, TEAO

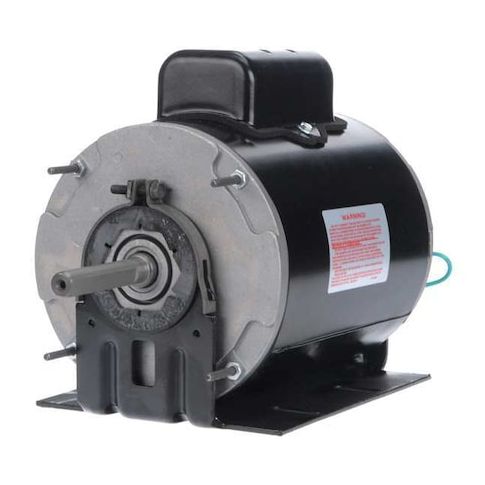

This 1/2 HP PSC motor from Century is designed for farm duty use and features a single-phase, permanent split capacitor design. With a nameplate RPM of 1,100 and a 48Z frame, it's suitable for a variety of applications such as irrigation pumps, water treatment systems, and grain handling equipment. The motor's continuous duty cycle and totally enclosed air-over design make it a reliable choice for harsh environments. Its compact size and lightweight design also make it easy to install and maintain. With a motor service factor of 1 and auto thermal protection, this motor provides peace of mind and extended lifespan.
Top product features:
- Permanent Split Capacitor motor design provides efficient and reliable operation.
- Totally Enclosed Air-Over motor enclosure protects against dust and moisture.
- Continuous duty cycle allows for uninterrupted operation over extended periods.
Top product applications:
- Pumps
- Fans
- Conveyors
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,100 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.5/3.3 A, 48Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.10
- Package Width: 6.90
- Package Height: 10.10
- Package Weight: 21.89
Product info last updated on February 6, 2026 6:31pm UTC
Category: Motors
