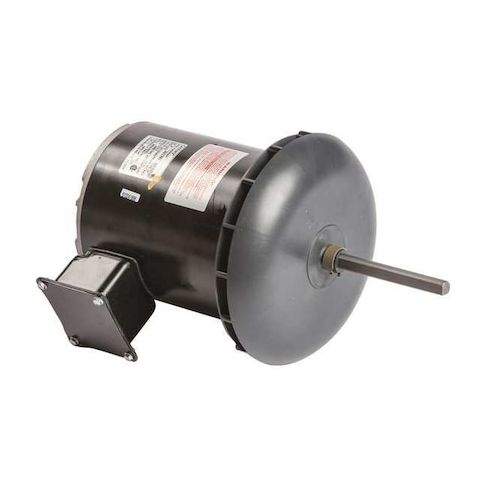

Condenser Fan Motor, 1 hp MPN:FC1106F
Condenser Fan Motor, 1 hp
This 1 hp condenser fan motor from Century is a reliable and efficient solution for a wide range of applications. Designed for single-phase operation, it features a permanent split capacitor motor design and operates at 1,075 RPM. Suitable for use in temperatures up to 70°C, it can be used at 200-230/460V AC, making it versatile for various installations. The motor's continuous duty cycle and auto thermal protection ensure optimal performance and longevity. Perfect for commercial or industrial use, this condenser fan motor is ideal for applications such as HVAC systems, air conditioning units, and ventilation systems.
Top product features:
- Permanent Split Capacitor motor design for reliable operation
- Usable at 208V and 200V for flexibility in installation
- Continuous duty cycle for high usage applications
Top product applications:
- Air Conditioning Unit
- Commercial Refrigeration Equipment
- HVAC Systems
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 6.4/3.2 A Full Load Amps, 48Y Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.90
- Package Width: 9.50
- Package Height: 18.50
- Package Weight: 31.44
Product info last updated on March 5, 2026 8:41am UTC
Category: Motors
