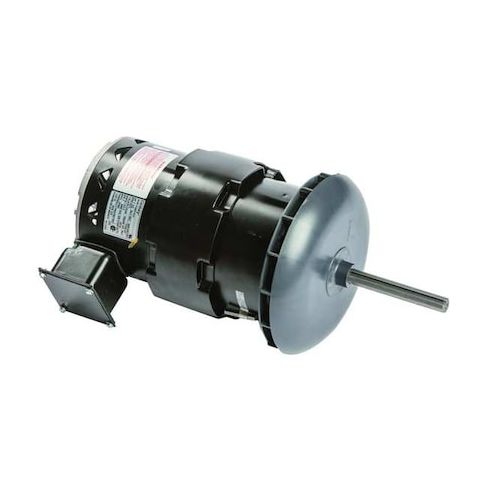

Condenser Fan Motor, 1-1/2HP, 1075rpm, 60Hz MPN:FC1156F
Condenser Fan Motor, 1-1/2HP, 1075rpm, 60Hz
This 1.5HP condenser fan motor from Century is a reliable and efficient solution for a wide range of applications. Suitable for use in commercial and industrial settings, it operates at 1075rpm and 60Hz, providing a consistent flow of air in condenser units. With a permanent split capacitor design and single-phase operation, this motor is easy to install and maintain. Its continuous duty cycle and 70°C maximum ambient temperature make it ideal for use in high-temperature environments. Perfect for HVAC, refrigeration, and air conditioning systems, this motor ensures optimal performance and longevity.
Top product features:
- Permanent Split Capacitor Motor Design
- Single Phase Operation
- Continuous Duty Cycle
Top product applications:
- Air Conditioning Systems
- Central Air Handling Units
- Packaged Rooftop Air Conditioning Units
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 7.0/3.5 A Full Load Amps, 48Y Frame, Output Watts 1100 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.90
- Package Width: 9.40
- Package Height: 18.40
- Package Weight: 34.53
Product info last updated on January 23, 2026 6:17am UTC
Category: Motors
