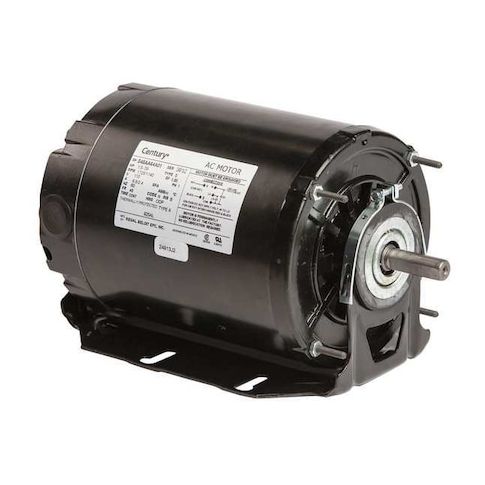

Split-Phase Belt Drive Motor, 1/3, 1/11 HP, 48 Frame, 115V AC Voltage, 1, 725/1, 140 Nameplate RPM MPN:925AL
Split-Phase Belt Drive Motor, 1/3, 1/11 HP, 48 Frame, 115V AC Voltage, 1, 725/1, 140 Nameplate RPM
This 1/3 and 1/11 HP Split-Phase Belt Drive Motor from Century is a reliable and efficient solution for various applications. Suitable for use in fan and blower systems, this motor offers two speed options, 1,725 and 1,140 RPM, making it adaptable to different demands. With a continuous duty cycle and a maximum ambient temperature of 40 degrees C, it can withstand harsh environments. Its open drip-proof design and cradle base mounting type ensure easy installation and maintenance. Perfect for use in residential and commercial settings, this motor provides a cost-effective and reliable solution for a wide range of applications.
Top product features:
- Split-phase belt drive motor design
- Provides two speeds, 1,725 and 1,140 RPM
- Has a continuous duty cycle
Top product applications:
- Residential HVAC systems
- Commercial HVAC systems
- Industrial ventilation systems
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/11 hp, 1/3 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 6.6/2.4 A Full Load Amps, 48 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.20
- Package Width: 7.20
- Package Height: 8.40
- Package Weight: 18.14
Product info last updated on February 1, 2026 3:12am UTC
Category: Motors
