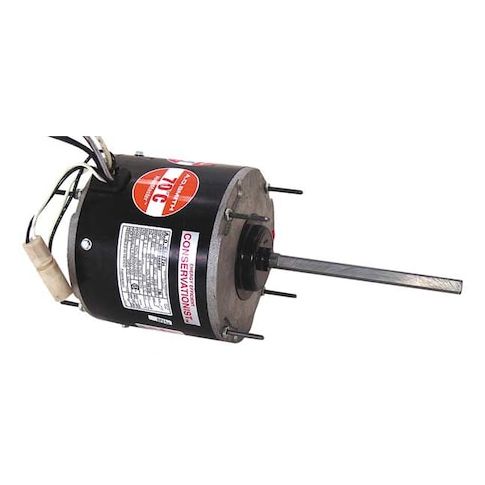

Condenser Fan Motor, 1/3 hp MPN:ORM4688BF
Condenser Fan Motor, 1/3 hp
This 1/3 hp condenser fan motor from Century is a reliable and efficient solution for various applications. Suitable for use in environments with a maximum ambient temperature of 70 degrees C, it operates at 825 RPM and provides 250 watts of output power. The motor is designed for continuous duty cycles and features auto thermal protection. Its compact design and totally enclosed air-over enclosure make it ideal for use in commercial and industrial settings, such as air conditioning and ventilation systems. With a lead time of just one day, this motor is a convenient choice for businesses and contractors.
Top product features:
- Permanent Split Capacitor motor design
- Totally Enclosed Air-Over motor enclosure design
- Continuous duty cycle operation
Top product applications:
- HVAC Systems
- Air Conditioning Units
- Commercial Refrigeration
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 460V AC, 1.0 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.50
- Package Width: 6.80
- Package Height: 7.20
- Package Weight: 13.74
