Condenser Fan Motor, 1/6 hp; 1/4 hp MPN:9723
Condenser Fan Motor, 1/6 hp; 1/4 hp

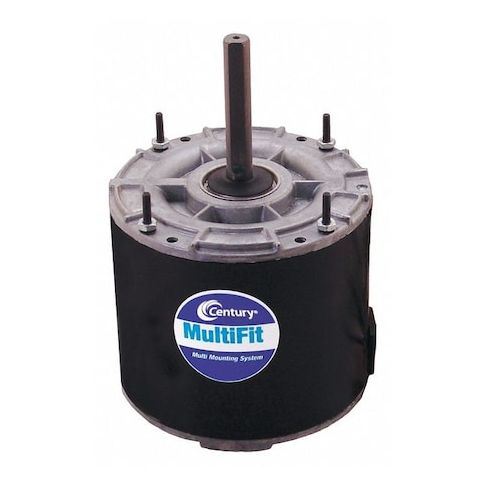

This 1/4 hp condenser fan motor from Century is a reliable and efficient solution for various applications. Suitable for use in condenser units, air handlers, and other HVAC equipment, it operates at 1,075 RPM and 190 watts. The permanent split capacitor design ensures smooth and quiet operation, while the totally enclosed air-over enclosure protects the motor from dust and moisture. With a continuous duty cycle and maximum ambient temperature of 60°C, this motor is ideal for use in commercial and residential settings, providing reliable performance and extending the lifespan of HVAC systems.
Top product features:
- Single Phase operation
- Permanent Split Capacitor motor design
- Totally Enclosed Air-Over motor enclosure design
Top product applications:
- Air Conditioning Units
- HVAC Systems
- Commercial Refrigeration Units
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp, 1/6 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.0 A Full Load Amps, 42Y Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.20
- Package Width: 6.30
- Package Height: 6.80
- Package Weight: 11.73
Product info last updated on January 29, 2026 12:58am UTC
Category: Motors
