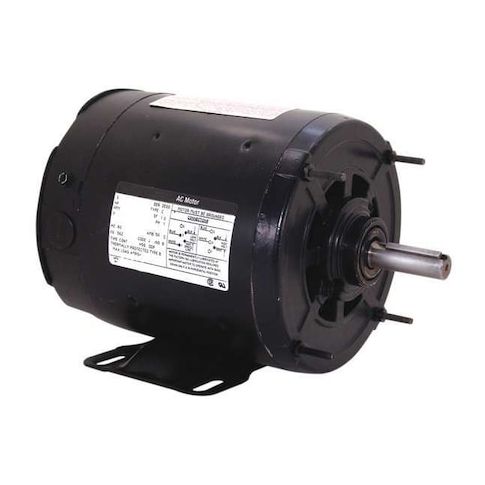

Split-Phase Belt Drive Motor, 3/4 HP, 56Z Frame, 115V AC Voltage, 1, 725 Nameplate RPM MPN:OS2074
Split-Phase Belt Drive Motor, 3/4 HP, 56Z Frame, 115V AC Voltage, 1, 725 Nameplate RPM
This 3/4 HP, 115V AC Split-Phase Belt Drive Motor is designed for a variety of applications, including fan and blower systems. With a continuous duty cycle and 1,725 nameplate RPM, it provides reliable operation and efficient performance. The motor's rigid base mounting type and open enclosure design make it easy to integrate into existing systems. Suitable for use in temperatures up to 40°C, this motor is ideal for commercial and industrial settings. Its compact size and low amp draw make it a cost-effective solution for applications requiring a reliable and efficient motor.
Top product features:
- Split-phase belt drive motor design for efficient power transmission
- Single-phase operation for use in a variety of applications
- Continuous duty cycle for reliable and sustained performance
Top product applications:
- HVAC System
- Industrial Fan
- Commercial Blower
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 9.6 A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Rigid Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.90
- Package Width: 7.90
- Package Height: 8.50
- Package Weight: 17.50
Product info last updated on February 4, 2026 4:46pm UTC
Category: Motors
