MODEL-RFHP-48FR MPN:661A
MODEL-RFHP-48FR

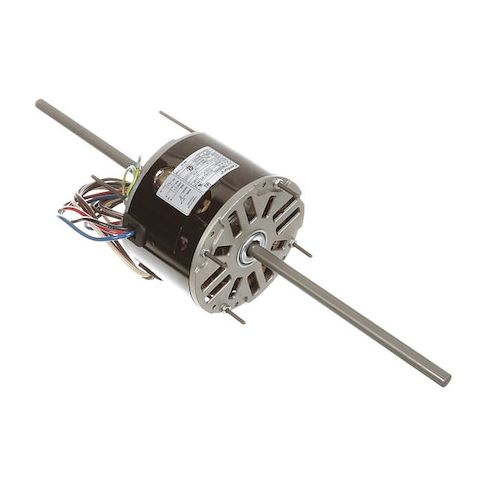

The Century MODEL-RFHP-48FR Condenser Fan Motor is a reliable and efficient solution for various applications. Suitable for use in residential and commercial settings, this motor is designed to operate at 1,625 RPM with three speed options, providing flexibility and customization. Its compact 48Y frame makes it easy to install and maintain. With a service factor of 1 and thermal protection, this motor is built to last. Its open air design and steel frame ensure durability and resistance to extreme temperatures. Ideal for use in HVAC systems, ventilation, and other condenser fan applications, this motor provides reliable performance and long-lasting service.
Top product features:
- Permanent Split Capacitor motor design
- Single phase operation
- Three speeds (1,625 RPM)
Top product applications:
- Condenser fan motor for residential air conditioning systems
- Commercial HVAC systems requiring a low horsepower motor
- Industrial cooling applications where a compact, single-phase motor is needed
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp, 1/6 hp, 1/8 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 3, Voltage 115V AC, 1.9/2.3/3.0 A Full Load Amps, 48Y Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 13.25
Product info last updated on January 30, 2026 9:34pm UTC
Category: Motors
