MODEL-RFHP-48FR MPN:FE6003F
MODEL-RFHP-48FR

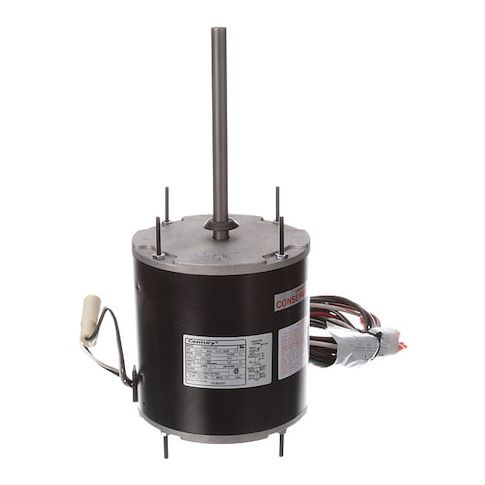

This condenser fan motor from Century is designed for reliable performance in a variety of applications. With a permanent split capacitor design and single-phase operation, it's suitable for use in commercial and industrial settings. The motor's 825 RPM speed and 2-speed operation make it versatile for different cooling needs. Its 1/2 hp rating and 370 W output provide sufficient power for most condenser fan applications. The motor's durable design and totally enclosed air-over enclosure ensure long-lasting operation in temperatures up to 70°C. Ideal for use in HVAC systems, this motor is a reliable choice for commercial and industrial cooling applications.
Top product features:
- Permanent Split Capacitor motor design
- Motor shaft rotation is clockwise/counterclockwise
- Totally Enclosed Air-Over motor enclosure design
Top product applications:
- HVAC Systems
- Industrial Fans
- Commercial Air Handling Units
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp, 1/4 hp HP, Nameplate RPM 825 RPM, No. of Speeds 2, Voltage 208-230V AC, 1.4/2.4 A Full Load Amps, 48 Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Hole, Stud, Motor Frame Material Steel
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 20.00
Product info last updated on March 5, 2026 4:01pm UTC
Category: Motors
