MODEL-CFHP-56FR MPN:K100
MODEL-CFHP-56FR

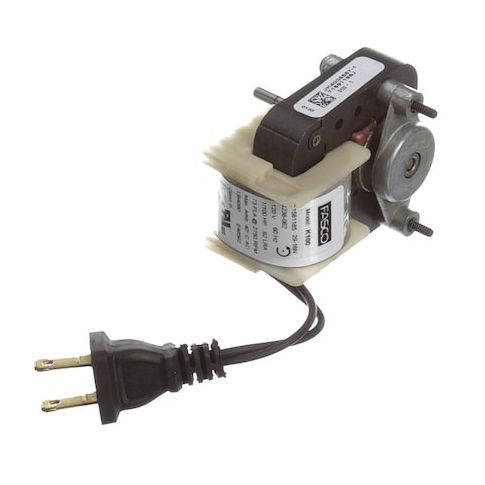

The Fasco MODEL-CFHP-56FR C-Frame Motor is a reliable and efficient solution for various applications. With a single-phase, shaded pole design and 1/100 HP rating, it operates at 2,750 RPM. Suitable for use at 120V AC, this motor is ideal for low-power applications such as small fans, pumps, and other machinery. Its compact size and open-air enclosure design make it easy to integrate into existing systems. The motor's auto thermal protection and Class B insulation ensure reliable operation in temperatures up to 40°C. Perfect for industries such as manufacturing, HVAC, and agriculture, this motor provides a cost-effective solution for a wide range of applications.
Top product features:
- Shaded pole motor design
- Single phase operation
- Auto thermal protection
Top product applications:
- General Purpose Fan Motor
- Pump Motor
- Air Blower Motor
C-Frame Motor, Single Phase, Motor Design Shaded Pole, 1/100 HP, Nameplate RPM 2,750 RPM, No. of Speeds 1, Voltage 120V AC, 0.73 A Full Load Amps, Output Watts 0.01 kW, 60 Hz Hz, Replacement For 0648-0027, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 37.00
Product info last updated on February 27, 2026 7:53am UTC
Category: Motors
