Outdoor Condenser Fan Motor MPN:FB1106

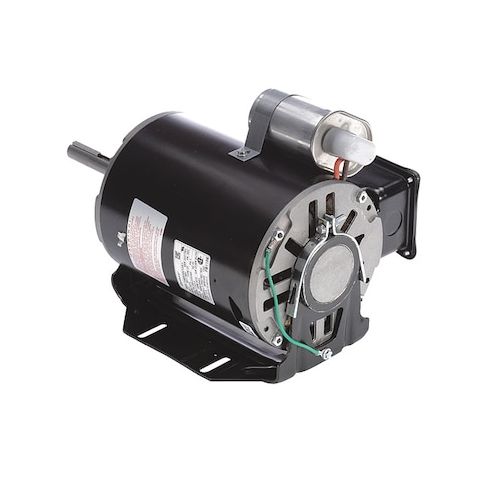

Outdoor Condenser Fan Motor
This outdoor condenser fan motor from Century is designed for reliable performance in a variety of applications. Suitable for use in single-phase systems, it features a permanent split capacitor design and a 1 hp horsepower rating. The motor operates at 1,075 RPM and is rated for 750 watts of output. Its compact 56Y frame and open-air enclosure make it easy to install and maintain. Ideal for use in commercial or industrial settings, this motor is well-suited for applications such as HVAC systems, air conditioning units, and heat pumps. Its durable construction and reliable performance make it a great choice for heavy-duty use.
Top product features:
- Permanent Split Capacitor motor design
- Single phase operation
- 60 Hz operation
Top product applications:
- HVAC systems for residential and commercial buildings
- Industrial cooling systems for factories and warehouses
- Heat exchangers and condensers for refrigeration equipment
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 7.6/3.8 A Full Load Amps, 56Y Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Cradle Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 30.41
Product info last updated on January 28, 2026 6:29pm UTC
Category: Motors
