ODP Resilient Base Motor MPN:H852L

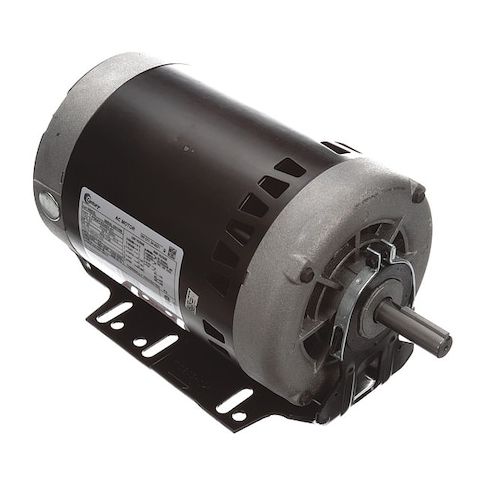

ODP Resilient Base Motor
The ODP Resilient Base Motor from Century is a reliable and efficient solution for various applications. Suitable for use in fan and blower systems, this three-phase motor offers a high horsepower rating of 1 hp and a nameplate RPM of 1,725 RPM. Its continuous duty cycle and 60 Hz frequency make it ideal for demanding environments. The motor's open drip-proof enclosure and cradle base mounting type provide easy installation and maintenance. With a maximum ambient temperature of 40°C, this motor is perfect for use in commercial and industrial settings, including HVAC systems, ventilation systems, and more.
Top product features:
- Three-phase motor design
- Continuous duty cycle
- Auto thermal protection
Top product applications:
- HVAC systems
- Industrial ventilation systems
- Commercial air handling systems
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 2.0/3.7-4.0 A Full Load Amps, 56H Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.60
- Package Width: 8.40
- Package Height: 10.60
- Package Weight: 26.60
Product info last updated on February 15, 2026 8:19pm UTC
Category: Motors
