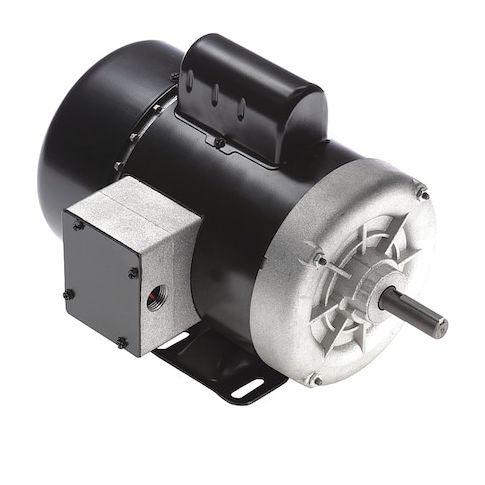

Capacitor-Start Farm Duty Motor, 1 1/2 HP, K56 Frame, 115/208-230V AC Voltage, 3, 450 Nameplate RPM MPN:B762
Capacitor-Start Farm Duty Motor, 1 1/2 HP, K56 Frame, 115/208-230V AC Voltage, 3, 450 Nameplate RPM
This 1.5 HP farm duty motor is designed for heavy-duty applications, featuring a capacitor-start design for efficient operation and a rigid base for secure mounting. With a nameplate RPM of 3,450, it provides reliable power for demanding tasks. Suitable for use in a variety of settings, including farms, ranches, and industrial facilities, this motor offers continuous duty cycle operation in temperatures up to 40°C. Its totally enclosed fan-cooled design ensures optimal performance and longevity, making it an ideal choice for applications requiring high torque and reliability.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor longevity and reduced maintenance
- Single Phase motor design for use in a variety of applications
- Continuous Duty Cycle for reliable operation in demanding environments
Top product applications:
- Pump applications for irrigation systems
- Fans for large industrial ventilation systems
- Generators for backup power in remote areas
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.3-8.0/16.0 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 11.20
- Package Height: 10.50
- Package Weight: 33.10
Product info last updated on January 24, 2026 2:37am UTC
Category: Motors
