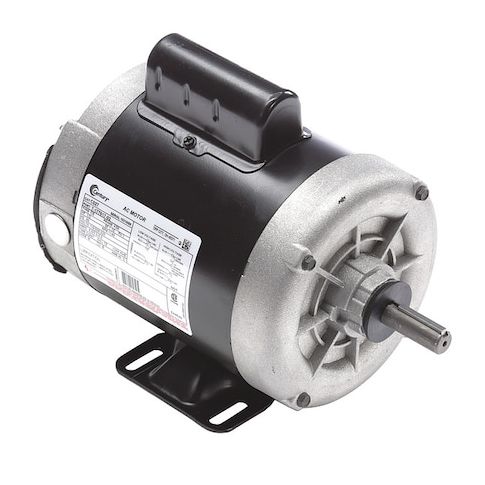

Capacitor-Start Farm Duty Motor, 1/3 HP, K56 Frame, 115/208-230V AC Voltage, 1, 140 Nameplate RPM MPN:C027
Capacitor-Start Farm Duty Motor, 1/3 HP, K56 Frame, 115/208-230V AC Voltage, 1, 140 Nameplate RPM
This Century Farm Duty Motor is a reliable and efficient solution for a variety of applications. With its single-phase design and capacitor-start technology, it provides a high-torque output at low speeds, making it ideal for use in agricultural, industrial, and commercial settings. The motor's 1/3 horsepower rating and 1,140 nameplate RPM ensure smooth and consistent performance, while its totally enclosed non-ventilated design protects against dust and moisture. Suitable for continuous duty cycles, this motor is perfect for applications such as irrigation pumps, grain handling equipment, and conveyor systems, providing years of reliable service and minimizing downtime.
Top product features:
- Capacitor-start design for high starting torque and efficient operation
- Totally enclosed non-ventilated enclosure for protection from dust and moisture
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Pumps and irrigation systems for agricultural use
- Industrial laundry equipment for washing and drying clothes
- Centrifugal separators for dairy and food processing plants
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.0/3.0-3.0 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 29.00
Product info last updated on February 13, 2026 9:21pm UTC
Category: Motors
