Capacitor-Start Farm Duty Motor, 1/2 HP, J56 Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM MPN:C521

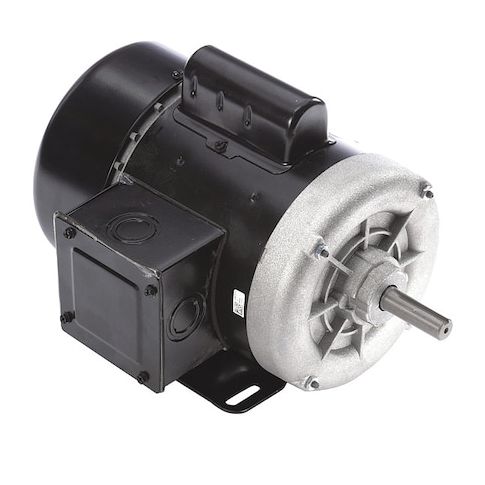

Capacitor-Start Farm Duty Motor, 1/2 HP, J56 Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM
This 1/2 HP capacitor-start farm duty motor from Century is a reliable and efficient solution for a variety of applications. Designed for single-phase use, it operates at 1,725 RPM and is suitable for 115/208-230V AC voltage. Its totally enclosed fan-cooled design ensures optimal performance in harsh environments, while its rigid base mounting type provides stability. With a maximum ambient temperature of 40°C and continuous duty cycle, this motor is perfect for farm equipment, machinery, and other heavy-duty applications. Its compact size and weight make it easy to install and transport, providing a cost-effective solution for your power needs.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reliability
- Motor Shaft Rotation in both CW and CCW directions for increased flexibility and versatility
- Continuous Duty Cycle for uninterrupted operation in demanding applications
Top product applications:
- Pumping water for irrigation systems
- Powering farm equipment such as pumps and generators
- Driving conveyor belts and other machinery on farms and ranches
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 7.2/3.5-3.6 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 29.00
Product info last updated on January 31, 2026 5:46am UTC
Category: Motors
