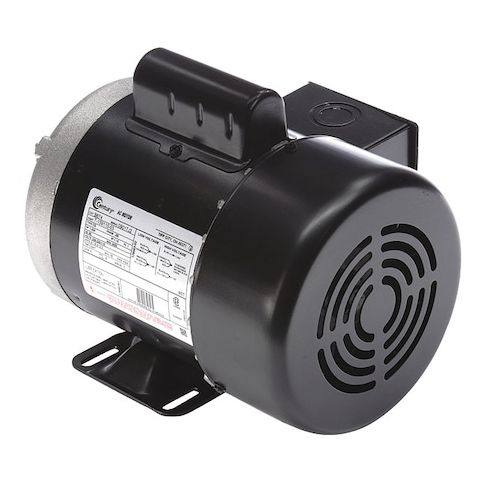

Capacitor-Start Farm Duty Motor, 1 HP, J56 Frame, 115/208-230V AC Voltage, 3, 450 Nameplate RPM MPN:B674
Capacitor-Start Farm Duty Motor, 1 HP, J56 Frame, 115/208-230V AC Voltage, 3, 450 Nameplate RPM
This 1 HP capacitor-start farm duty motor is designed for demanding agricultural applications, providing reliable and efficient power in a variety of environments. With a nameplate RPM of 3,450 and a single-phase design, it's ideal for applications such as irrigation pumps, grain dryers, and other farm equipment. The motor's totally enclosed fan-cooled design and rigid base mounting ensure long-lasting performance in harsh conditions. Its 115/208-230V AC voltage compatibility and continuous duty cycle make it a versatile solution for farms and agricultural businesses.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Single Phase motor design for simplicity and ease of installation
- Continuous Duty Cycle for reliable operation in demanding applications
Top product applications:
- Pumps and irrigation systems
- Well drilling equipment
- Centrifugal separators and dryers
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.1-6.0/12.0 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 33.00
Product info last updated on March 11, 2026 9:29pm UTC
Category: Motors
