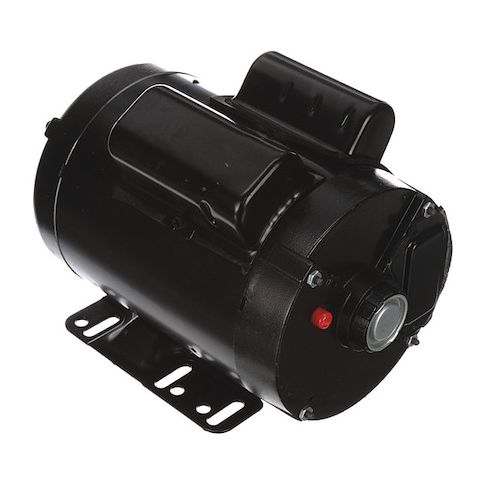

Farm Duty Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1, 725 Nameplate RPM, M56H Frame MPN:C593
Farm Duty Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1, 725 Nameplate RPM, M56H Frame
This Farm Duty Motor is designed for heavy-duty applications in agricultural settings, providing reliable and efficient power for a variety of tasks. With a single-phase, capacitor-start/run design, it offers a high starting torque and smooth operation. Its 1 HP capacity and 1,725 RPM make it suitable for applications such as irrigation pumps, grain dryers, and other farm equipment. The motor's totally enclosed air-over design ensures durability and protection from the elements, while its rigid base mounting provides stability and secure operation. Ideal for continuous use in demanding farm environments, this motor delivers reliable performance and long-lasting service.
Top product features:
- Capacitor-start/run design for efficient starting and reduced wear on the motor
- Totally enclosed air-over motor enclosure for protection from dust and moisture
- Continuous duty cycle capability for 24/7 operation in high-demand applications
Top product applications:
- Pumps and irrigation systems in agricultural settings
- Industrial fans and blowers for air circulation and ventilation
- Centrifugal separators for milk and dairy products
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.6/4.8 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 38.00
Product info last updated on February 13, 2026 4:54pm UTC
Category: Motors
