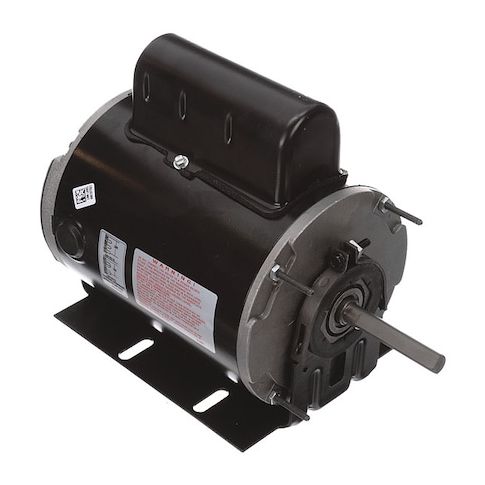

Farm Duty Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 825 Nameplate RPM, F48Z Frame MPN:C039A
Farm Duty Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 825 Nameplate RPM, F48Z Frame
This 1/2 HP Farm Duty Motor from Century is a reliable and efficient solution for a variety of applications, including agricultural, industrial, and commercial use. With a permanent split capacitor design and 825 RPM, it provides consistent performance and durability. Suitable for continuous duty cycles, it can operate in temperatures up to 40°C and is protected against overheating. Its totally enclosed air-over design and cradle base mounting make it easy to install and maintain. Ideal for use in applications such as pumps, fans, and conveyor systems, this motor offers a cost-effective and long-lasting solution for demanding tasks.
Top product features:
- Permanent Split Capacitor motor design
- Totally Enclosed Air-Over motor enclosure design
- Continuous duty cycle operation
Top product applications:
- Pumps and irrigation systems for agricultural use
- Centrifugal fans and blowers for ventilation and air circulation
- Conveyors and material handling systems in agricultural settings
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.1/3.6 A, 48Z Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.50
- Package Width: 7.40
- Package Height: 10.20
- Package Weight: 23.50
Product info last updated on January 30, 2026 9:38pm UTC
Category: Motors
