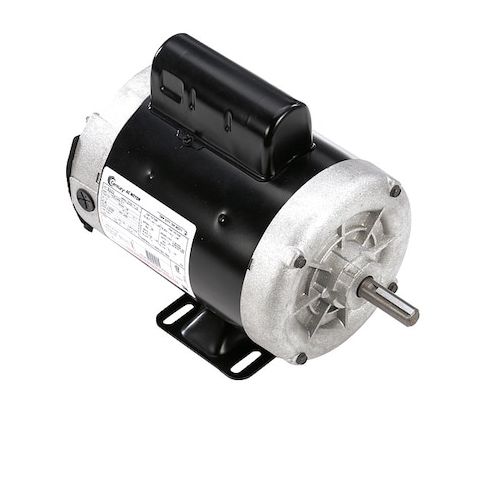

Permanent Split Capacitor Aeration Fan Motor, 1 HP, 115/230V AC Voltage, L56 Frame MPN:B222
Permanent Split Capacitor Aeration Fan Motor, 1 HP, 115/230V AC Voltage, L56 Frame
The Century Permanent Split Capacitor Aeration Fan Motor is a reliable and efficient solution for a wide range of applications, including industrial ventilation systems, agricultural equipment, and commercial HVAC installations. Its 1 HP rating and 3,450 RPM make it ideal for high-volume airflow requirements. With a permanent split capacitor design, this motor provides smooth and quiet operation, while its farm duty rating ensures it can withstand the demands of heavy use. Suitable for use at 115/230V AC voltage, this motor is a versatile and cost-effective option for applications where continuous duty is required.
Top product features:
- Permanent Split Capacitor design for efficient operation
- Totally Enclosed Air-Over motor enclosure for dust and moisture protection
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Air Conditioning Systems
- Well Pumps and Water Supply Systems
- Industrial Ventilation Systems
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.2/4.6 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 31.00
Product info last updated on February 2, 2026 9:52am UTC
Category: Motors
