Pool Pump Motor, 3-Phase, 3 HP, 56C Frame, 3, 450 Nameplate RPM MPN:H740
Pool Pump Motor, 3-Phase, 3 HP, 56C Frame, 3, 450 Nameplate RPM

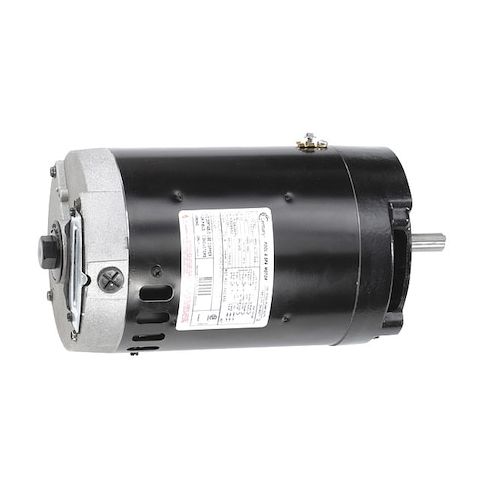

This 3-phase 3 HP pool pump motor from Century is designed for continuous duty cycles and features a 56C frame, making it suitable for heavy-use applications. Its open dripproof enclosure provides protection from the elements, while its steel frame ensures durability. With a maximum ambient temperature of 40 degrees C and a 2.00-1.80/1.00 full load amp rating, this motor is ideal for high-performance pool pumps. Its compact design measures 6.4 inches in diameter and 11.25 inches in length, making it a great fit for a variety of pool systems, including residential and commercial installations.
Top product features:
- Continuous duty cycle for high usage applications
- Ball bearings for smooth and quiet operation
- Open dripproof enclosure design for easy maintenance and protection from water splash
Top product applications:
- Pool
- Pump
- Motor
Pool Pump Motor, Body Dia. 6.4 in, Bolt Circle Dia. 5 15/16 in, Duty Cycle Continuous, Frame 56C, Hz 60/50, Full Load Amps 2.00-1.80/1.00, Height 6 1/2 in, HP 3, Ins. Class B, Length Less Shaft 11 1/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 9.50
- Package Height: 11.00
- Package Weight: 37.00
- Restricted States: NY
Product info last updated on March 31, 2026 4:09pm UTC
Category: Motors
