Motor, PSC, 1/4 HP, 1100, 115/230V, 48Z, TEAO MPN:C045A
Motor, PSC, 1/4 HP, 1100, 115/230V, 48Z, TEAO

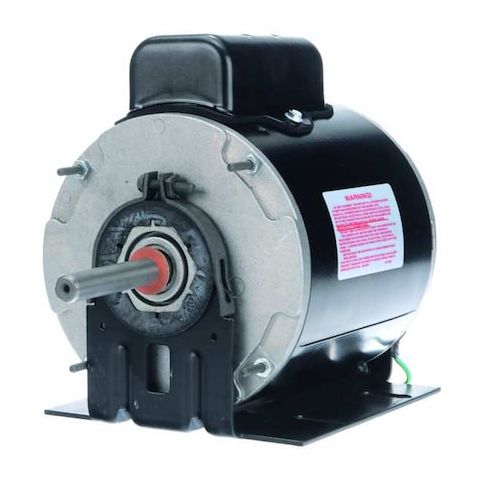

This 1/4 HP, single-phase motor from Century is designed for farm duty applications, offering reliable performance in harsh environments. With a permanent split capacitor design and 1,100 RPM, it's ideal for uses such as irrigation pumps, agitators, and other machinery. The motor's totally enclosed air-over design provides protection from dust and moisture, while its continuous duty cycle ensures consistent operation. Suitable for 115/230V AC, it's a versatile solution for a range of farm and agricultural applications, including those requiring CW/CCW rotation. Its compact size and easy mounting make it a convenient choice for various installation scenarios.
Top product features:
- Totally Enclosed Air-Over motor enclosure design provides protection from dust and moisture.
- Permanent Split Capacitor motor design allows for efficient and reliable operation.
- Continuous duty cycle enables the motor to operate for extended periods without overheating.
Top product applications:
- Pump applications due to its low horsepower and high RPM
- Fans and blowers in industrial settings due to its single-phase design and high airflow capabilities
- Milling and drilling machines in woodworking and metalworking applications due to its high RPM and continuous duty cycle
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,100 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.0/2 A, 48Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.10
- Package Width: 7.00
- Package Height: 10.40
- Package Weight: 15.60
Product info last updated on March 22, 2026 11:46am UTC
Category: Motors
