ODP Resilient Base Motor MPN:BK3074

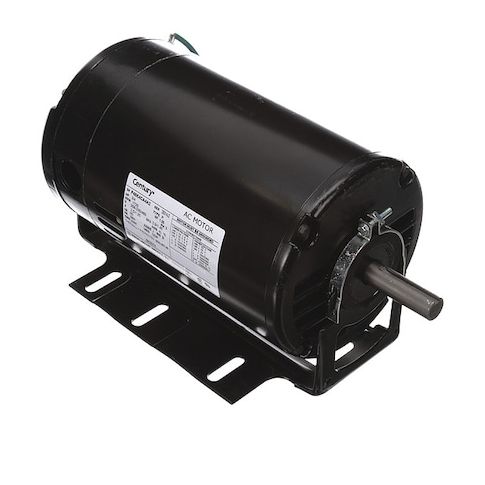

ODP Resilient Base Motor
The ODP Resilient Base Motor from Century is a reliable and efficient solution for a variety of applications. This three-phase motor is designed for continuous use in demanding environments, with a service factor of 1.25 and thermal protection for added reliability. With a high output of 560 watts and a durable steel frame, it's perfect for fans and blowers in industrial settings, such as manufacturing facilities, warehouses, and construction sites. Its compact design and all-angle mounting capabilities make it easy to integrate into existing systems, providing a cost-effective and efficient solution for a range of applications.
Top product features:
- Three-phase motor design
- Auto thermal protection
- Open drip-proof motor enclosure design
Top product applications:
- HVAC Systems
- Air Handling Units
- Industrial Fans
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 2.5/1.3 A Full Load Amps, 56H Frame, Output Watts 560 W, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.90
- Package Width: 7.10
- Package Height: 7.40
- Package Weight: 22.10
Product info last updated on January 23, 2026 9:13am UTC
Category: Motors
