Split-Phase Belt Drive Motor, 1/2 HP, 56 Frame, 115/230V AC Voltage, 1, 140 Nameplate RPM MPN:BF2056D

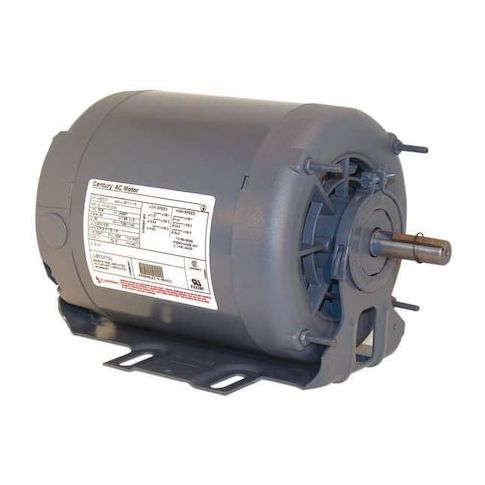

Split-Phase Belt Drive Motor, 1/2 HP, 56 Frame, 115/230V AC Voltage, 1, 140 Nameplate RPM
This 1/2 HP Split-Phase Belt Drive Motor is a reliable and efficient solution for a variety of applications, including fans and blowers. With a nameplate RPM of 1,140 and a voltage range of 115/230V AC, this motor can handle demanding tasks. Its open drip-proof enclosure and cradle base mounting type make it easy to install and maintain. The motor's continuous duty cycle and auto thermal protection ensure reliable operation, while its 1.25 service factor provides extra power when needed. Suitable for use in a range of environments, this motor is an ideal choice for fans and blowers in residential, commercial, and industrial settings.
Top product features:
- Split-phase design for efficient operation
- Single-phase motor for compatibility with standard household electrical systems
- Continuous duty cycle for reliable and consistent performance
Top product applications:
- Air Handling Units
- Ductless Heating and Cooling Systems
- Industrial Fans and Blowers
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, 9.2/4.6 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.20
- Package Width: 8.00
- Package Height: 10.50
- Package Weight: 29.55
Product info last updated on February 1, 2026 3:52am UTC
Category: Motors
