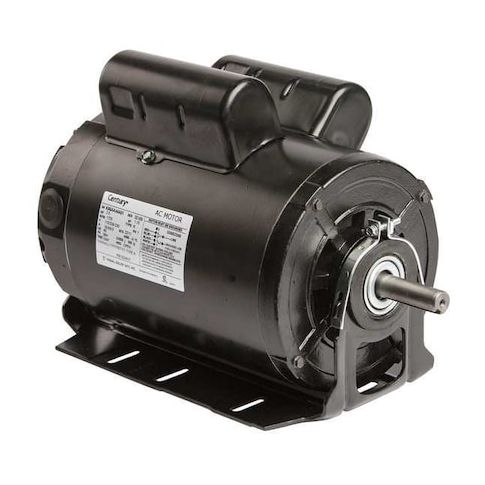

Capacitor-Start Belt Drive Motor, 2 HP, 56H Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM MPN:RB1204AV1
Capacitor-Start Belt Drive Motor, 2 HP, 56H Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM
This 2 HP Capacitor-Start Belt Drive Motor from Century is a reliable and efficient solution for various applications. Suitable for use in fan and blower applications, it operates at a high speed of 1,725 RPM, making it ideal for demanding tasks. With a compact 56H frame and open enclosure design, it is easy to install and maintain. The motor's continuous duty cycle and thermal protection ensure reliable operation even in harsh environments. Its versatility makes it suitable for use in a range of industries, including commercial and industrial settings, where a high-powered motor is required.
Top product features:
- Capacitor-start design for efficient motor operation
- Single-phase motor for easy installation and compatibility
- Continuous duty cycle for reliable and long-lasting performance
Top product applications:
- Air Conditioning Unit
- Industrial Ventilation System
- Drying Equipment
Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 19.6/9.8 A Full Load Amps, 56H Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Cradle Base, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.10
- Package Width: 8.20
- Package Height: 10.80
- Package Weight: 42.01
