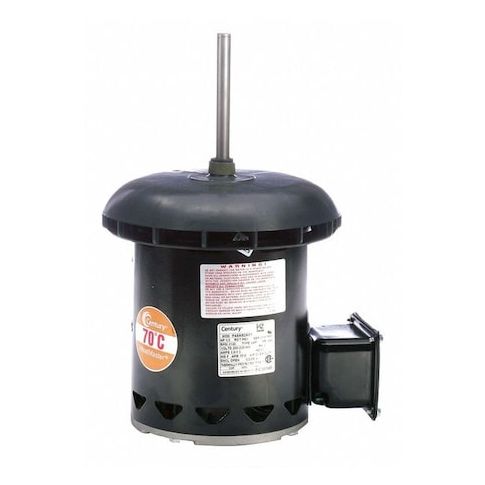

Condenser Fan Motor, 1/2 hp MPN:FC3056F
Condenser Fan Motor, 1/2 hp
This 1/2 hp three-phase condenser fan motor from Century is a reliable and efficient solution for various industrial and commercial applications. Suitable for use in environments with a maximum ambient temperature of 70°C, it can be used at voltages of 200-230/460V AC, making it a versatile option for a range of settings. The motor's continuous duty cycle and auto thermal protection ensure optimal performance and longevity. Ideal for use in air conditioning, heating, and ventilation systems, this motor provides a cost-effective and reliable solution for maintaining a comfortable and healthy indoor environment.
Top product features:
- Three-phase operation
- Motor thermal protection
- Continuous duty cycle
Top product applications:
- Air Conditioning Systems
- Commercial Refrigeration Units
- HVAC Systems
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 3.0/1.5 A Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.40
- Package Width: 11.40
- Package Height: 10.30
- Package Weight: 16.20
Product info last updated on February 22, 2026 8:29pm UTC
Category: Motors
