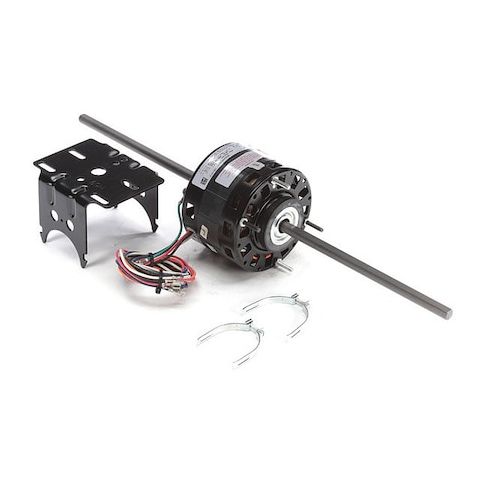

Room Air Cond Mtr, Shad Pol, OAO, 1550 RPM MPN:DBL4410
Room Air Cond Mtr, Shad Pol, OAO, 1550 RPM
This shaded pole motor is a reliable and efficient solution for room air conditioning applications. With a nameplate RPM of 1,550 and 4 speeds, it provides precise control over airflow and temperature. Suitable for single-phase systems, it operates at 115V AC and 3.1A full load amps. The motor's compact design and open air-over enclosure make it ideal for residential and commercial use. Its auto thermal protection and class A insulation ensure safe and reliable operation in ambient temperatures up to 40°C. Perfect for small to medium-sized air conditioning systems, this motor is a cost-effective and energy-efficient choice for a wide range of applications.
Top product features:
- Single Phase Operation
- Shaded Pole Motor Design
- Four Speeds
Top product applications:
- Room Air Conditioner
- Small Appliances
- Window Fans
Room Air Conditioner Motor, Single Phase, Motor Design Shaded Pole, 1/10 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 4, Voltage 115V AC, 3.1 A Full Load Amps, 42Y Frame, Output Watts 70 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 7.00
- Package Height: 7.30
- Package Weight: 11.70
