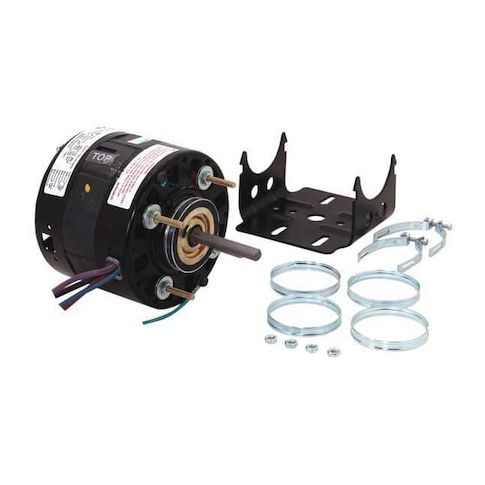

Mtr, Sh Pole, 1/10 HP, 1550, 115/208-230, 42Y MPN:RF4400
Mtr, Sh Pole, 1/10 HP, 1550, 115/208-230, 42Y
This 1/10 horsepower single-phase shaded pole motor from Century is designed for a wide range of applications, including HVAC and industrial use. With a nameplate RPM of 1,550 and a voltage range of 115/208-230V AC, it can be used in various environments. The motor's continuous duty cycle and 40°C maximum ambient temperature make it suitable for demanding applications. Its compact size and low weight make it easy to integrate into existing systems. This motor is a reliable and efficient solution for applications requiring low horsepower and high reliability, such as fans, blowers, and pumps.
Top product features:
- Single Phase Motor Design
- Shaded Pole Motor Design
- Continuous Duty Cycle
Top product applications:
- Fans
- Pumps
- Ventilation Systems
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/10 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 4.0/2.0 A Full Load Amps, 42Y Frame, Output Watts 70 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 5.90
- Package Height: 6.40
- Package Weight: 10.15
Product info last updated on February 10, 2026 3:55pm UTC
Category: Motors
