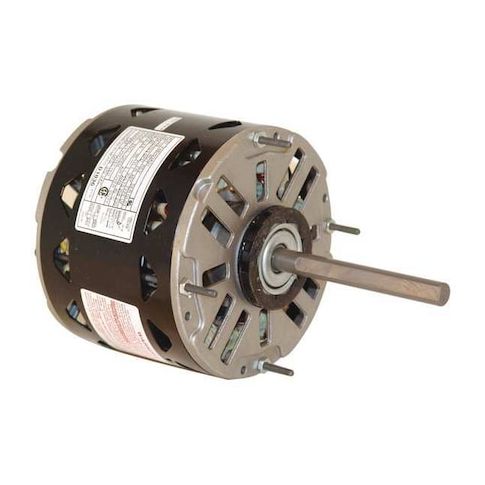

Motor, PSC, 1/4 HP, 1075 RPM, 115V, 48Y, OAO MPN:DL1026
Motor, PSC, 1/4 HP, 1075 RPM, 115V, 48Y, OAO
This 1/4 HP PSC motor from Century is a reliable and efficient solution for various applications. Ideal for use in fans and blowers, it operates at 1075 RPM and 115V AC, making it suitable for a range of installations. With a permanent split capacitor design and auto thermal protection, this motor provides consistent performance and durability. Its compact size and open air over design make it easy to integrate into existing systems. Suitable for use in dry environments up to 40°C, this motor is a great choice for residential and commercial applications, including ventilation, air circulation, and exhaust systems.
Top product features:
- Operates at 1075 RPM for efficient airflow
- Has a permanent split capacitor motor design for reliable operation
- Provides 190 watts of output power for effective fan or blower operation
Top product applications:
- Duct Fan
- Ceiling Fan
- HVAC Fan
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 115V AC, 4.1 A Full Load Amps, 48 Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.10
- Package Width: 8.00
- Package Height: 13.00
- Package Weight: 11.60
Product info last updated on February 3, 2026 9:24pm UTC
Category: Motors
