Condenser Fan Motor, 1/6 hp MPN:FE1016SF
Condenser Fan Motor, 1/6 hp

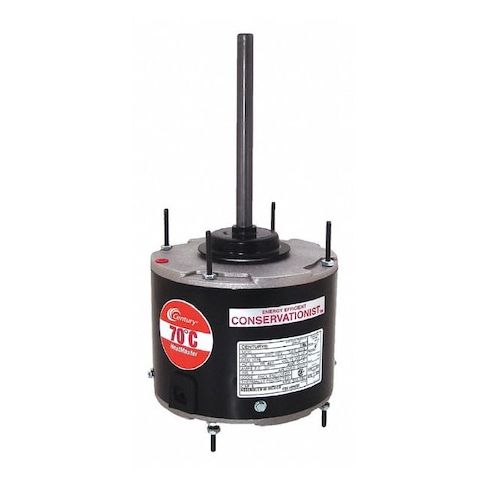

This 1/6 hp condenser fan motor from Century is designed for single-phase applications and operates at 1,075 RPM. It features a permanent split capacitor design, making it suitable for various condenser fan applications. The motor is rated for use at 208-230V AC and has a maximum ambient temperature of 70 degrees C. With its totally enclosed air-over design and stud mounting type, this motor provides reliable performance and protection. Its compact size and high efficiency make it ideal for use in residential and commercial air conditioning systems, providing quiet and efficient operation.
Top product features:
- Permanent Split Capacitor motor design
- Totally Enclosed Air-Over motor enclosure design
- Auto motor thermal protection
Top product applications:
- Air Conditioning Unit
- HVAC System
- Refrigeration Unit
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.4 A Full Load Amps, 48 Frame, Output Watts 130 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.50
- Package Width: 7.00
- Package Height: 7.10
- Package Weight: 10.68
Product info last updated on February 1, 2026 4:56am UTC
Category: Motors
