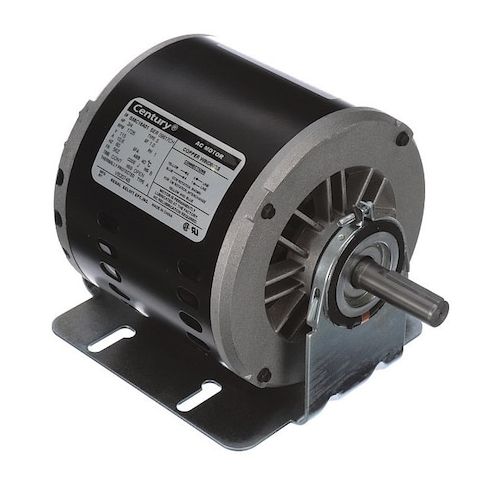

Evaporative Cooler Motor, 3/4 hp MPN:VB2074BV1
Evaporative Cooler Motor, 3/4 hp
Upgrade your evaporative cooling system with the Century 3/4 hp Evaporative Cooler Motor. Designed for single-phase applications, this motor offers reliable performance and energy efficiency. Its 1,725 RPM nameplate speed and 560 W output make it suitable for a variety of cooling applications. The motor's open drip-proof enclosure and cradle base mounting ensure easy installation and maintenance. With a maximum ambient temperature of 40°C and a motor service factor of 1, this motor is ideal for use in commercial and industrial settings, such as offices, warehouses, and restaurants, providing efficient cooling and reducing energy costs.
Top product features:
- Operates at a single phase to simplify installation and reduce power requirements
- Rotates at 1,725 RPM to provide efficient cooling performance
- Features an open drip-proof design to protect against moisture and dust
Top product applications:
- Residential evaporative cooling systems
- Commercial evaporative cooling systems
- Industrial evaporative cooling systems
Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 10.6 A Full Load Amps, 56Z Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 8.20
- Package Height: 9.10
- Package Weight: 17.38
Product info last updated on February 24, 2026 8:18pm UTC
Category: Motors
