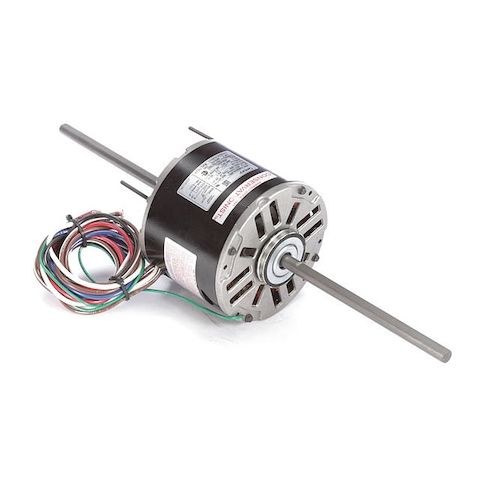

Room Air Cond Mtr, PSC, OAO, 1625 RPM MPN:RAL1024
Room Air Cond Mtr, PSC, OAO, 1625 RPM
This room air conditioner motor is a reliable and efficient solution for cooling applications. Designed for single-phase operation, it features a permanent split capacitor design and a durable semi-enclosed air-over enclosure. With a maximum ambient temperature rating of 40°C, it can handle a wide range of environments. The motor's continuous duty cycle and auto thermal protection ensure reliable operation. Suitable for use in residential and commercial settings, this motor is ideal for small to medium-sized air conditioning systems. Its compact size and low weight make it easy to install and maintain, providing a cost-effective solution for cooling needs.
Top product features:
- Single Phase operation
- Permanent Split Capacitor motor design
- Continuous Duty Cycle
Top product applications:
- Room Air Conditioner
- Window Air Conditioner
- Portable Air Conditioner
Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 3, Voltage 115V AC, 3.04 A Full Load Amps, 48Y Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Semi Enclosed Air-Over
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 7.00
- Package Height: 7.00
- Package Weight: 13.00
Product info last updated on January 27, 2026 10:48am UTC
Category: Motors
