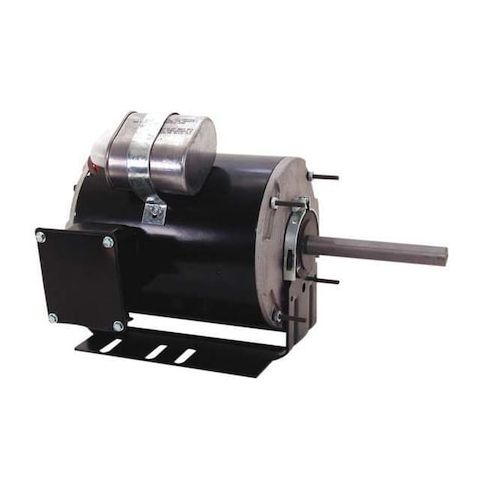

Condenser Fan Motor, 3/4 hp MPN:FB1076V1
Condenser Fan Motor, 3/4 hp
Upgrade your HVAC system with the reliable Century Condenser Fan Motor, a 3/4 horsepower powerhouse that delivers efficient cooling performance. Designed for single-phase applications, this motor features a permanent split capacitor design and operates at 1,075 RPM. Suitable for use at 208V, it's perfect for residential and light commercial air conditioning systems. With a continuous duty cycle and auto thermal protection, this motor ensures reliable operation in temperatures up to 60°C. Ideal for new installations or replacements, it's a cost-effective solution for maintaining a comfortable indoor climate. Order yours today and experience the difference of a high-quality condenser fan motor.
Top product features:
- Permanent Split Capacitor motor design
- Usable at 208V
- Continuous duty cycle
Top product applications:
- HVAC Systems
- Air Conditioning Units
- Packaged Air Handlers
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.0/2.5 A Full Load Amps, 48Y Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.20
- Package Width: 9.00
- Package Height: 8.20
- Package Weight: 27.50
Product info last updated on January 11, 2026 6:34pm UTC
Category: Motors
