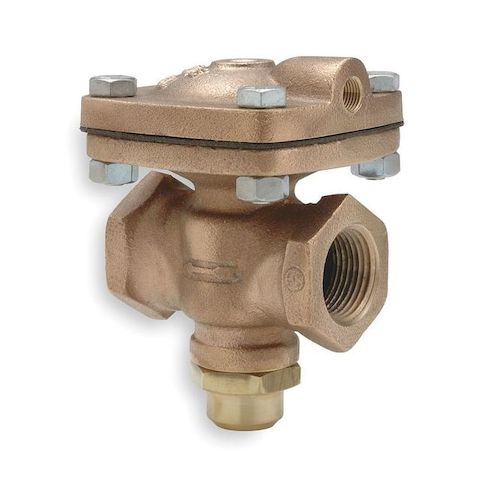

Air Operated Valve, 2-Way, NO, 3/4 In, FNPT MPN:D53DWSOBB01-E1
Air Operated Valve, 2-Way, NO, 3/4 In, FNPT
This 2-way air operated valve from Cash Valve is a reliable and efficient solution for controlling the flow of air, oil, and water in various industrial applications. With a Cv of 2.5 and a maximum operating pressure of 250 psi, it can handle demanding fluid control tasks. The valve's normally closed design ensures safe and secure operation, and its pneumatically actuated diaphragm provides precise control. Suitable for use in a range of industries, including manufacturing, oil and gas, and water treatment, this valve is built to last with a bronze body and Buna-N diaphragm and seal materials.
Top product features:
- Pneumatically actuated diaphragm valve
- Normally closed valve deactivated state
- Bronze body material
Top product applications:
- Air operated valve suitable for use in oil and water treatment plants to control the flow of fluids.
- Pneumatic actuation and diaphragm design make this valve suitable for use in applications requiring precise control and high flow rates.
- The valve's ability to operate at high pressures and temperatures makes it suitable for use in industrial processes such as oil and gas refining and chemical manufacturing.
Pneumatically Actuated Diaphragm Valve, Coefficient of Volume (Cv) 2.5, Nominal Valve Size 3/4 in, Actuator Air Port Connection 1/8 in FNPT, Connection Type - Side 1 NPTF, Connection Type - Side 2 NPTF, For Media Air, Oil, Water, Diaphragm Material Buna-N, Operating Temperature - Maximum 180 Degrees F, Maximum Pressure - Operating 250 psi, Valve Deactivated State Normally Closed (NC), Body Material Bronze, Diaphragm Valve Type 2-Way, Seal Material Buna-N, Overall Length 1.94 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.50
- Package Height: 6.10
- Package Weight: 2.85
Product info last updated on February 1, 2026 9:52am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
