Air Operated Valve, 2-Way, NO, 1 In, FNPT MPN:D53EWSOBB01-E1

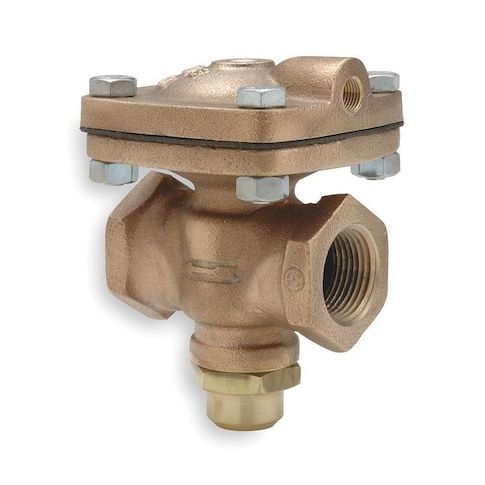

Air Operated Valve, 2-Way, NO, 1 In, FNPT
This 2-way air operated valve is a reliable solution for controlling the flow of air, oil, and water in various industrial applications. Its pneumatically actuated diaphragm design ensures precise and consistent operation, while its bronze body and Buna-N diaphragm and seal materials provide durability and resistance to corrosion. The valve's normally closed (NC) design ensures a secure shut-off in the deactivated state, making it ideal for applications where flow control is critical. Suitable for use in temperatures up to 180°F and pressures up to 250 psi, this valve is perfect for use in industrial processes, HVAC systems, and more.
Top product features:
- Pneumatically actuated diaphragm valve design allows for precise control over fluid flow.
- Normally closed (NC) valve deactivated state provides a default shut-off position.
- Buna-N diaphragm and seal materials ensure chemical resistance and durability.
Top product applications:
- Air-operated valve used in pneumatic systems for controlling the flow of air, oil, and water in various industrial applications.
- Valve used in water treatment plants to regulate the flow of water and chemicals.
- Air-operated valve employed in oil and gas industry for controlling the flow of fluids in pipelines.
Pneumatically Actuated Diaphragm Valve, Coefficient of Volume (Cv) 12, Nominal Valve Size 1 in, Actuator Air Port Connection 1/4 in FNPT, Connection Type - Side 1 NPTF, Connection Type - Side 2 NPTF, For Media Air, Oil, Water, Diaphragm Material Buna-N, Operating Temperature - Maximum 180 Degrees F, Maximum Pressure - Operating 250 psi, Valve Deactivated State Normally Closed (NC), Body Material Bronze, Diaphragm Valve Type 2-Way, Seal Material Buna-N, Overall Length 3.5 in
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 6.50
- Package Height: 10.10
- Package Weight: 12.30
Product info last updated on February 16, 2026 9:09am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
