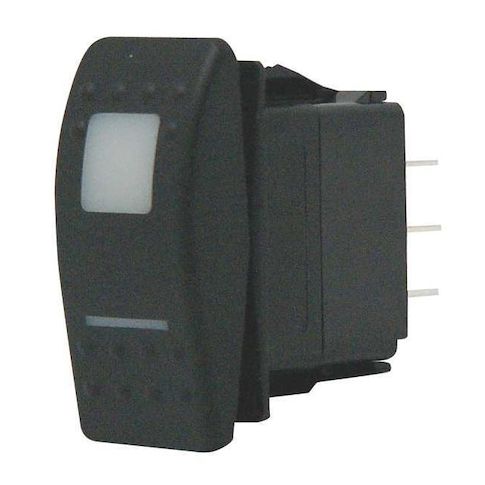

Lighted Rocker Switch, DPDT, 7 Connections MPN:VJD1D66B-ASC00-000
Lighted Rocker Switch, DPDT, 7 Connections
This DPDT lighted rocker switch from Carling is a versatile and reliable solution for various applications. With its 7 connections, it can handle complex circuit configurations, and its on/off/on function allows for three-position control. The switch is rated for 20A at 12V, making it suitable for 1/2 HP motors. The illuminated red switch tip indicates the status of the circuit, providing a clear visual cue. CSA and UL listed, this switch meets rigorous safety standards. Its IP66 and IP68 ratings ensure it can withstand harsh environments. Ideal for use in industrial, commercial, and residential settings, this switch is a valuable addition to any electrical system.
Top product features:
- Lighted to indicate switch status
- DPDT contact form for versatile circuit control
- Quick connect tab for easy terminal connection
Top product applications:
- Automotive Electrical Systems
- Marine Electrical Systems
- Industrial Control Panels
Lighted Rocker Switch, Contact Form DPDT, Number of Connections 7, Switch Function On/Off/On, Terminals 0.250 in Quick Connect Tab, Mounting Hole 0.830 in x 1.450 in, AC Contact Rating 20A 12V, DC Contact Rating 20 A @ 12 V, HP 1/2 hp, Body Color Black, Switch Color Red, Standards CSA, UL Listed, IP Rating IP66, IP68, Special Features Lighted
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.50
- Package Height: 1.10
- Package Weight: 0.30
Product info last updated on February 5, 2026 7:22am UTC
Category: Industrial Electrical Controls and Automation
