1-1/2" FNPT Low Lead Brass Spring Check Valve MPN:CV-6TLF
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4744923

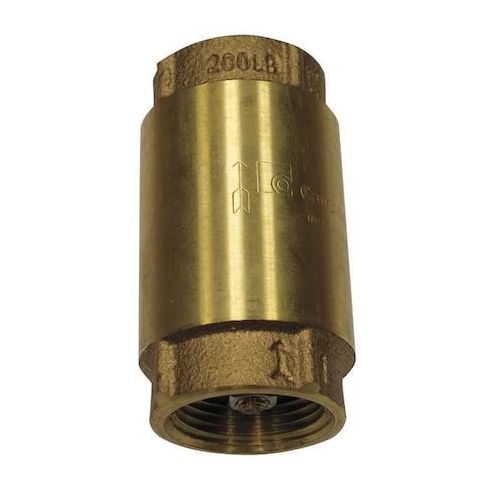

1-1/2" FNPT Low Lead Brass Spring Check Valve
The CAMPBELL CV-6TLF is a 1-1/2 in. spring check valve with an inline body and FNPT x FNPT female threaded connections. It uses a spring-loaded poppet for one-way flow applications and closure when flow stops or reverses. This valve is for water service and is intended for reverse-flow control applications in piping systems with horizontal or vertical mounting.
Key Features:
- Valve type: Spring check valve with inline spring design and poppet mechanism
- Size: 1-1/2 in. nominal valve size with 1-1/2 in. FNPT connections on both ends
- Body material: Lead-free red brass
- Internal materials: 304 stainless steel check mechanism and spring, bronze seat, stainless steel screen
- Seal material: Buna-N / NBR
- Cracking pressure: 0.5 psi
- Flow rating: 25 gpm
- Pressure rating: 200 psi WOG
- maximum water pressure 200 psi
- Temperature range: 35°F to 158°F
- Mounting orientation: Horizontal or vertical
- Standards: NSF 61, ASTM B62
- Dimensions: 4 in. overall length, 2-1/2 in. overall height, 2-1/2 in. width
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 6.60
- Package Height: 3.30
- Package Weight: 1.70
Product info last updated on February 28, 2026 5:32pm UTC
Category: Pipes, Valves and Fittings
