1" FNPT Low Lead Brass Spring Check Valve MPN:CV-4TLF
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4727667

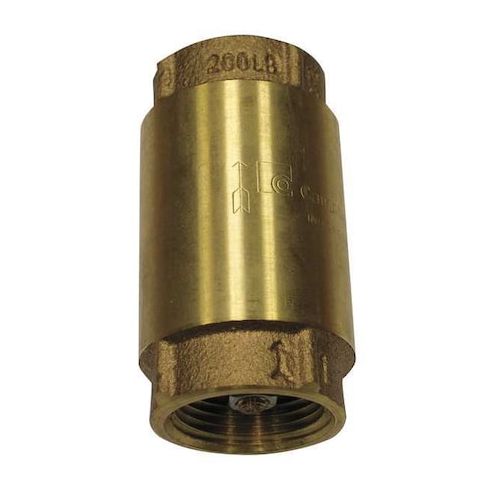

1" FNPT Low Lead Brass Spring Check Valve
The CAMPBELL CV-4TLF is a 1 in FNPT low lead brass spring check valve with an inline body and spring-loaded poppet mechanism. It is intended for one-way flow control in piping systems and is compatible with horizontal or vertical mounting positions. Designed for general purpose water service, this valve features female NPT threaded connections for inline installation.
Key Features:
- 1 in female NPT x female NPT connections for threaded inline installation
- Low lead brass body with 304 stainless steel check mechanism and 304 stainless steel spring
- Poppet-style spring check design with 0.5 psi cracking pressure
- Rated flow: 18 gpm
- Maximum pressure: 200 psi WOG
- maximum water pressure: 200 psi
- Operating temperature range: 35 degrees F to 158 degrees F
- Bronze seat with Buna-N (NBR) seal
- NSF 61
- Overall length: 3.25 in
- overall height: 1 3/4 in
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 6.60
- Package Height: 3.10
- Package Weight: 1.05
Product info last updated on March 10, 2026 5:06pm UTC
Category: Pipes, Valves and Fittings
