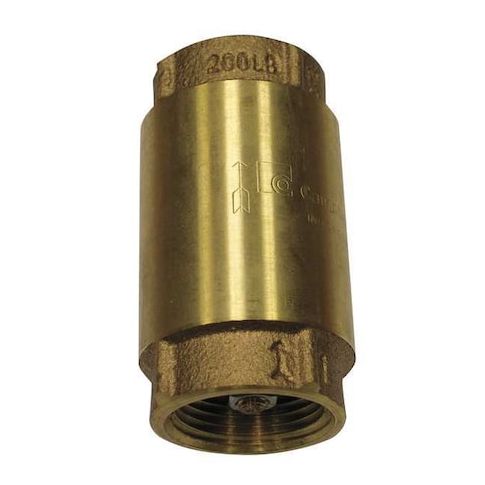

2" FNPT Low Lead Brass Spring Check Valve MPN:CV-8TLF
Free Shipping
In Stock
This 2in FNPT Low Lead Brass Spring Check Valve from Campbell is a reliable solution for various applications, including water and steam systems. Its single flow design and inline spring mechanism ensure efficient flow control, while its brass body and stainless steel spring provide durability and resistance to corrosion. With a cracking pressure of 0.5 psi, this valve is suitable for horizontal or vertical mounting and can withstand pressures up to 200 psi. Ideal for use in commercial and industrial settings, this valve offers a reliable and cost-effective solution for applications such as plumbing, HVAC, and process control.
Top product features:
- 2 inch inline spring check valve with a single flow design
- Has a cracking pressure of 0.5 psi
- Made with a stainless steel spring and a bronze seat
Top product applications:
- Water Treatment Plants
- Steam Heating Systems
- Pumping Stations
The CAMPBELL CV-8TLF is a 2 in FNPT low lead brass spring check valve with an inline body and spring-loaded poppet mechanism. It is configured for one-direction flow applications with a spring-loaded poppet mechanism that closes when flow stops or reverses. This valve supports horizontal or vertical mounting and is rated for 30 gpm flow with a 0.5 psi cracking pressure.
Key Features:
- 2 in FNPT x FNPT female threaded connections for inline piping installation
- Low lead red brass body with brass valve body construction
- Spring-loaded poppet check mechanism with 304 stainless steel mechanism and spring
- Buna-N/NBR seal and bronze seat material
- Maximum pressure: 200 psi WOG
- Operating temperature range: 35°F to 158°F
- Single flow design
- not full flow
- Overall size: 5 in L x 3 in H x 3 in W
- NSF 61
- ASTM B62
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 5.50
- Package Height: 6.10
- Package Weight: 3.15
